1.8 oil temp and sensor gauge

[Diy80professional]

I am looking for confirmation on size thread and fitting that will help me add a temp and pressure gauge yet still have the OEM sensor. Is the OEM m10x1.0 or 1/8-27?

Racing SS 304 M10x1.0 Male Adapter to 1/8In NPT TEE Oil Pressure Sensor Gauge | 8 in x 8 in | US

Inlet Thread Size: M10X1.0 Male. Outlet Thread Size: M10X1.0 Outlet Female. Center Tap Thread Size: 1/8" NPT Female. Material: 304 Stainless Steel. Works with most For Honda, For Subaru, For Toyota, For Hyundai, For Mazda, For Suzuki and For Mitsubishi oil pressure senders.

www.ebay.com

or

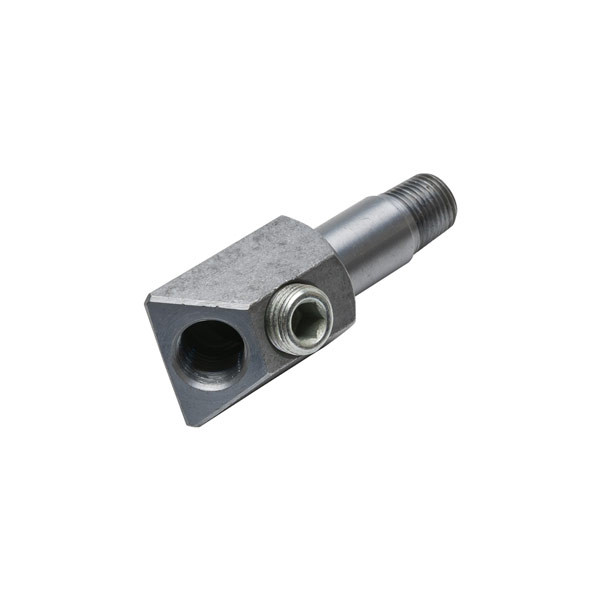

Oil Pressure Sensor Thread Adapter for Chevrolet Small Block 305/350

GlowShift Oil Pressure Adapters for the Chevrolet Small Block 305/350 Make It Easy to Install an Aftermarket Oil Pressure Gauge Sensor Without Any Drilling.

www.glowshiftdirect.com



[TurtleOverlord]

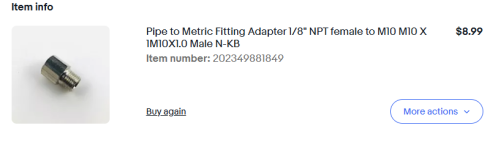

I think this is the one I got to replace the factory sensor, and there is barely enough space. the right angle ones wouldnt fit.



[TurtleOverlord]

There should also be a spot above the exhaust manifold, never used it though.



[Diy80professional]

So I could possibly use that for adding sensors... I will have to do some research. Thank you lots
