What would you pay for a custom boost gauge?

[Eric Smit]

now extra excited.


-Eric Smit



[MrSonic]

Small Bone: I give to you.

What's in the photo (THIS IS ONLY FOR BOOST) I'm building each part in it's own environment to keep it simple.

1X arduino unit (unp, mega, nano) doesn't matter for testing. I was going to replace this unit with a custom PCB with a lock so you couldn't get my code but I think more people with try it if it's open for everyone.

1X big ass LCD... more on this later

1X ABS (sample boost)

1X programmer

thats it for boost, next is coolant temp.



[firstorbit84]

You should do a kick starter

Totally awesome. What are the dimensions of that screen?



[Eric Smit]

looks horrifying. haha.


-Eric Smit



[MrSonic]

lol for now yes it's a mess but when it's all sorted it'll be quite small in size the LCD is a 2.5 X 1.5 inch or 128X64 GLCD



[firstorbit84]

Will it fit in the left cubby?



[MrSonic]

the final kit, yes.



[Tommyboy4725]

Vertically? Is it gonna be flush and fill most of it?



[MrSonic]

All the circuits, and sensor components will be encased under the dash/out of the way. the LCD can be placed anywhere. I plan on making a mold of the upper dash tray and installing it there.



[firstorbit84]

I'd like too see it mounted vertical in the left cubby



[OshawaSonic]

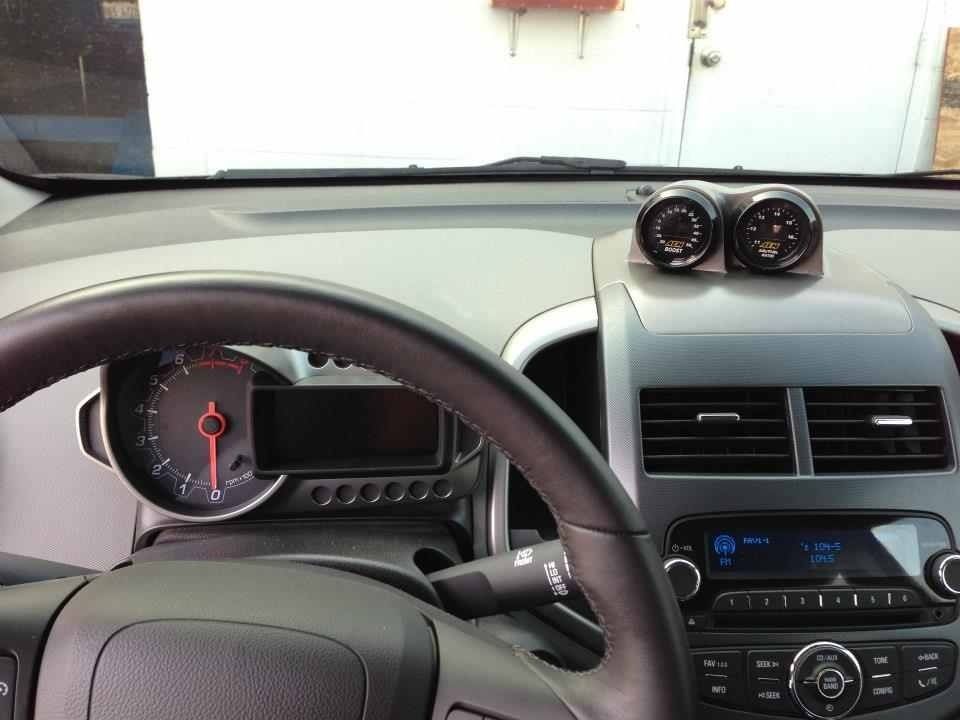

I like this setup!



MrSonic - keep up the good work, it seems like you have the know-how to make this work - I am really keen on finding a more 'stock' looking solution to rectifying the car's sad absence of gauges.



[kevindaniels63]

I love that one but I would like to see MRSONIC's digital one mounted up there as well as the cubby hole.



[pwntbywombat]

Very nice work! I would definitely buy one of these.



[MrSonic]

Well I was planning on doing the test install over the weekend (61 deg and sunny) but the next day on Saturday the temp dropped to 17 deg and 3 inches of snow... So testing is being put off for now. I'm going to start working on optional parts and getting the code documented.

Chris



[sx sonic]

Way cool, in for for results



[MrSonic]

Update:

Still haven't installed the testing unit, however I have gotten the build cost under $40 per unit. My goal is around $30 per unit (un-built). Even better news is that I did testing on my friends truck and it is working! There are now 4 versions of the build. I will post more about them later, I'm also setting up a how too and web page for people who want to build them your self.

More to come later today!
Chris



[firstorbit84]

Awesome. Keep it up



[Tommyboy4725]

It's later today!



[MrSonic]

Sorry i just found out some rather bad news about my gf's aunt... I haven't had time to do any work. tomorrow will be another day.



[Tommyboy4725]

Oh dang, sorry to hear that. :/
